Configuration reference

This page covers all plugin settings, the custom block entity field glossary, and the ACL permission structure.

Plugin settings

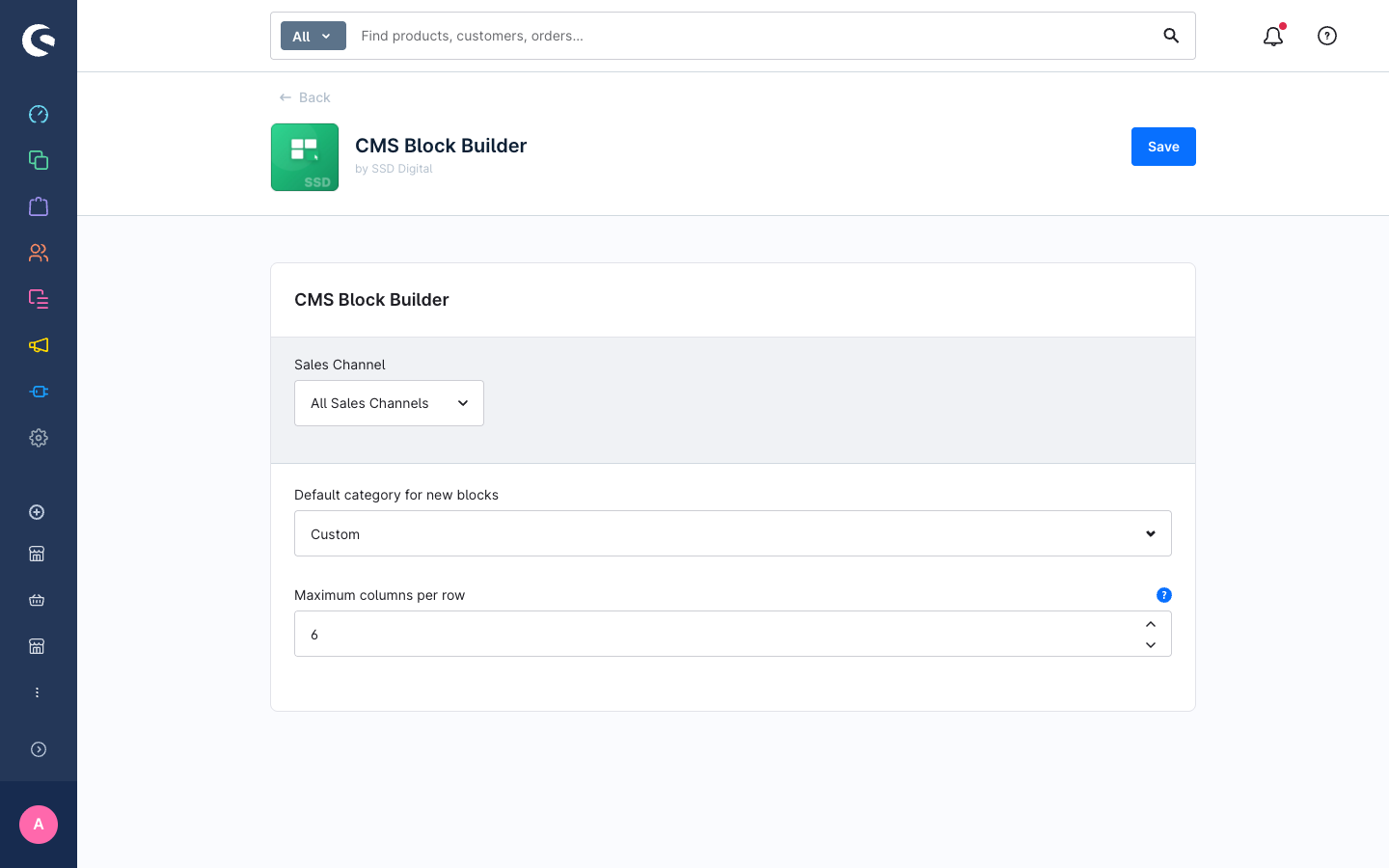

These settings are configured in Extensions > My extensions > CMS Block Builder > Configure (or via the Shopware admin system configuration).

CMS Block Builder

Setting	Type	Default	Description
defaultCategory — Default category for new blocks	single-select	custom	Options: custom (Custom), text-image (Text & Image), commerce (Commerce), video (Video).
maxColumnsPerRow — Maximum columns per row	int	6	The maximum number of columns a merchant can add to a single row in the block composer.

---

Entity: ssd_custom_block

Each custom block is stored as one row in this entity. The entity is translatable — the label field stores per-language display names.

Field	Type	Required	Description
id	UUID (binary 16)	Yes	Primary key. Generated automatically.
technicalName	string	Yes	Unique identifier used as the CMS block type (ssd-custom-<technicalName>). Immutable after creation.
label	string (translatable)	Yes	Human-readable display name shown in the CMS block picker.
category	string	Yes	Category group in the block picker. One of: custom, text-image, commerce, video, or any other category present in the Shopware block registry.
gridConfig	JSON	Yes	12-column CSS Grid area definitions per breakpoint. See data model below.
slots	JSON	Yes	Slot-ID-to-element-type mapping. Keys are area IDs from gridConfig; values are { type, config } objects.
previewMediaId	UUID (FK to media)	No	Optional preview image shown in the block picker.
position	int	No	Sort order within a category in the block picker. Default: 0. Lower values appear first.
active	bool	No	Whether the block is registered in the block picker. Default: true.
createdAt	datetime	Yes	Set automatically on creation.
updatedAt	datetime	No	Updated automatically on save.

Translation entity: ssd_custom_block_translation

Field	Type	Description
ssd_custom_block_id	UUID	FK to ssd_custom_block.
language_id	UUID	FK to language.
label	string	Translated display name for this block.

gridConfig data model

{
  "columns": 12,
  "gridRows": 4,
  "breakpoints": {
    "desktop": {
      "areas": [
        { "id": "slot-0", "rowStart": 0, "colStart": 0, "rowEnd": 1, "colEnd": 6 },
        { "id": "slot-1", "rowStart": 0, "colStart": 6, "rowEnd": 1, "colEnd": 12 }
      ]
    },
    "tablet": { "areas": [] },
    "mobile": { "areas": [] }
  }
}

• columns — always 12. The grid is a fixed 12-column CSS Grid.
• gridRows — number of rows in the grid canvas. Minimum 1.
• breakpoints.desktop.areas — the authoritative layout. Each area has a slot id, zero-based rowStart/rowEnd/colStart/colEnd in CSS Grid terms.
• breakpoints.tablet.areas / breakpoints.mobile.areas — optional independent layouts. Empty arrays mean the desktop layout is used as a fallback at that breakpoint.

slots data model

{
  "slot-0": { "type": "image", "config": {} },
  "slot-1": { "type": "text", "config": {} }
}

Keys are area IDs from gridConfig.breakpoints.desktop.areas. The type value is the Shopware CMS element type name (e.g. text, image, product-slider). The config object holds element-level defaults (currently unused; element configuration is stored in the CMS page data).

---

ACL permissions

The plugin registers a permission group called CMS Block Builder under the Content category in Shopware's role management.

Role	Privileges granted	Dependencies
ssd_custom_block.viewer	ssd_custom_block:read, ssd_custom_block_translation:read, media:read, cms_block:read	None
ssd_custom_block.editor	ssd_custom_block:update, ssd_custom_block_translation:update/create/delete, media:create/update	viewer
ssd_custom_block.creator	ssd_custom_block:create, ssd_custom_block_translation:create	viewer, editor
ssd_custom_block.deleter	ssd_custom_block:delete, cms_block:read, cms_section:read, cms_page:read	viewer

Assign these roles in Settings > System > User management > Roles. A typical content editor needs viewer + editor. A content manager also needs creator. Only administrators should have the deleter role.

---

Storefront rendering

The plugin overrides cms-section-block-container.html.twig to intercept any block whose type starts with ssd-custom-. For those blocks it renders cms-block-ssd-custom-block.html.twig, which:

1. Reads the ssdCustomBlock extension attached by CustomBlockRegistrationSubscriber at page load time.
2. Builds three CSS Grid containers — desktop, tablet, and mobile — each positioned using grid-column and grid-row inline styles from the area definitions.
3. Includes the standard Shopware CMS element template for each slot.

Responsive switching is handled in base.scss using Bootstrap's media-breakpoint-down() mixins: the desktop grid is shown by default; the tablet grid replaces it at ≤ md; the mobile grid replaces both at ≤ sm.

---

Block registration flow

At runtime the plugin follows this sequence to make custom blocks available in the CMS editor:

1. CustomBlockCmsSubscriber listens to GenericPageLoadedEvent and attaches active blocks to the page as a ssdCustomBlocks extension.
2. CustomBlockRegistrationSubscriber listens to CmsPageLoadedEvent and attaches the matching gridConfig and slots to each ssd-custom-* block on the page as a ssdCustomBlock extension.
3. On the admin side, ssd-cms-block-registry.js overrides sw-cms-sidebar and calls cmsService.registerCmsBlock() for each active block fetched from the API, making them available in the block picker.
